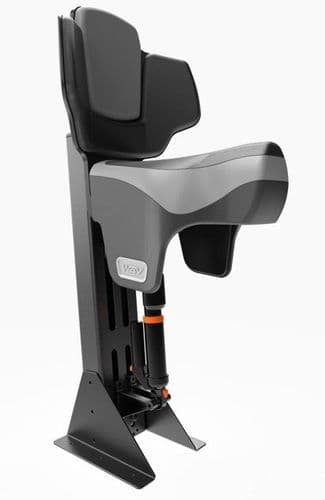

LT Series

Designed & manufactured in the UK’s maritime city of Southampton, WBV’s new long travel (LT) shock mitigation seat represents the best of British innovation & engineering. The LT Series is purpose built to reduce shock and whole body vibration (WBV) onboard high speed RIBS & power boats. The LT Series is the first suspension seat available to feature multiple layers of shock mitigating technologies fitted as standard to give you the most comfortable ride.

All LT Series unit’s are fitted with WBV’s patented OMEGA shock mitigating seat inserts as standard within the multi foam density seat cushion. The LT Series uses the new FOX Factory Float 3 EVOL QS3 shock absorber which is the most advanced FOX shock to ever be used on a marine suspension seat. The float QS3 features tool free adjustment allowing you to quickly choose from 3 specifically calibrated ride control setting with the flick of a switch. This coupled with features like a genuine Kashima coated 6061-T6 aluminium body, dual air spring allowing you to adjust the EVOL & main chamber independently controlling ride heights, bottom out adjustable velocity sensitive damping and has factory tuned rebound to specifically suit the WBV LT Series.


The LT Series uses a CNC machined hard anodised 6061-T6 aluminium spine & components with A4 316 stainless steel fixings. The internal bearing system used within the spine of the LT Series is completely designed and machined in-house using over 60 years of knowledge inspired by our high load yachting hardware. The LT series is available in a range of variations to suit different applications and layouts.

Features
SHOCK: FOX Float 3 EVOL QS3
Travel: 140mm (5.5”)
Height Adjustable seating position
Fresh water flushing hole
Ergonomically designed winged seat
